32A 200-240V AC Power Distribution Unit Vertical Reverse Rack Mount PDU C13/C19

Product Categories

Tianjin Estel Electronic Science and Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 32A 200240V AC Power Distribution Unit Vertical Reverse Rack Mount PDU C13C19
Brand: ESTEL
Price: 43 USD

Brand Name : ESTEL

Model Number : 1S32L30KN1D1-36E6G

Certification : ROHS

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : 43-1429 usd

Payment Terms : L/C, D/A, D/P, T/T, MoneyGram

Supply Ability : 3,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

Size and specification : (L*W*H) 1628*52*44.4mm

Cable specifications : 3*6㎜²*3m cable

Socket system and number : IEC320 C19 (6); IEC320 C13 (36)

Cable plug system : IEC60309 L+N+PE/32A

Fixed hole center distance : 933mm (Center distance of back mounting hole)

Internal connecting line : 12AWG, 14AWG Electronic wire, copper strip

Power supply input mode : Cable

Shell color : Black

Cable installation mode : Bottom cable input

Cable fixing : PG19

Contact Now

32A 200-240V Vertical Reverse Rack Power Distribution Unit

1. Power Distribution Unit Product Specification Parameter Description:

Customer name		NO.	Product specification parameter description
Product name	PDU	1	Socket system and number	IEC320 C19(6); IEC320 C13(36)
Product specification and model	1S32L30KN1D1-36E6G	2	Internal connecting line	12AWG,14AWG Electronic wire, copper strip
Product code		3	Power supply input mode	Cable
Product quantity		4	Cable plug system	IEC60309 L+N+PE/32A
RoHS	YES	5	Cable specifications	36㎜²3m cable
Customer product code	/	6	Cable installation mode	Bottom cable input
Customer product specification and model		7	Cable fixing	PG19
Customer product specification and model		8	Shell color	Black
Special product description	/	9	Size and specification(LWH)	16285244.4mm
		10	Fixed hole center distance	933mm(Center distance of back mounting hole )
		11	Aluminum alloy shell length	1624mm
		12	Product installation mode	Bracket installation
		13	Installation direction of bracket	Vertical reverse installation
Factory accessories	4 pcs for each M6 screw and nut,Detachable ear hook 2pcs	14	Control indication function	2*1P/16A Hydraulic circuit breaker
Factory accessories	4 pcs for each M6 screw and nut,Detachable ear hook 2pcs	15	Protection monitoring function	KN-1
Product identification	Product name	PDU
	Customer specifications and models	1S32L30KN1D1-36E6G
	Rated voltage and current	200-240VAC 32A
	Safety certification mark	/
	LOGO	/
	Manufacturer	ESTEL

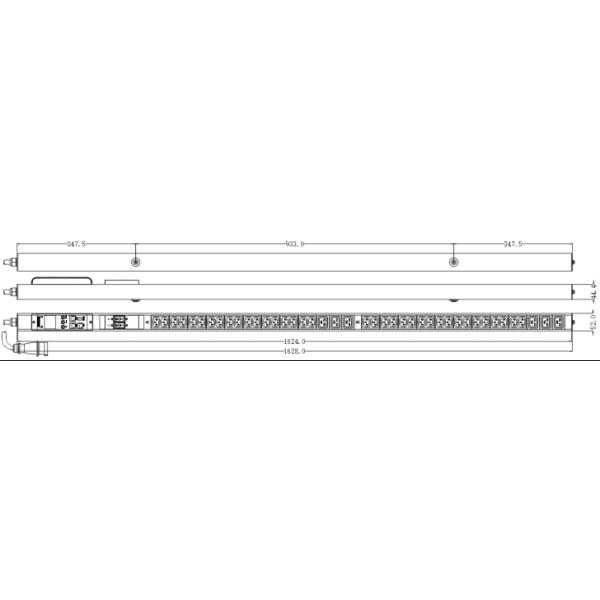

2. Power Distribution Unit Product Renderings:

32A 200-240V AC Power Distribution Unit Vertical Reverse Rack Mount PDU C13/C19

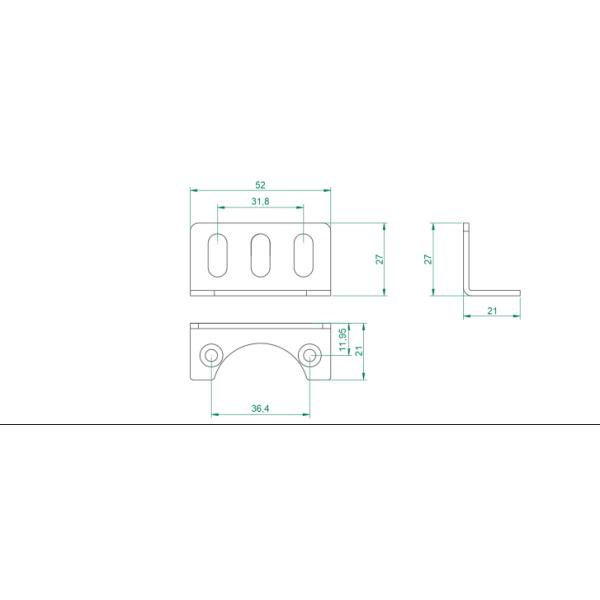

Detachable ear hook:

32A 200-240V AC Power Distribution Unit Vertical Reverse Rack Mount PDU C13/C19
